CTD-1713-S W*

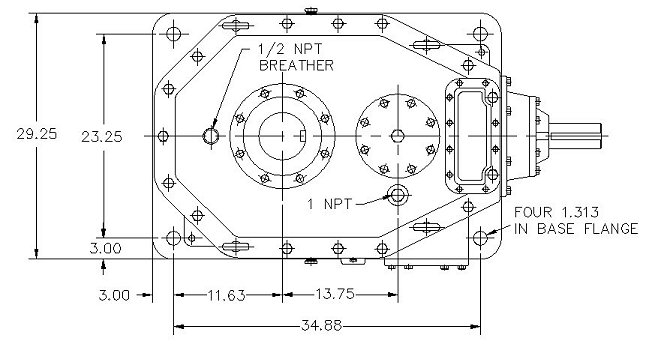

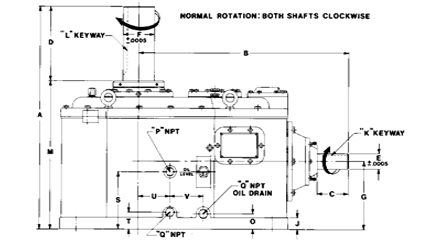

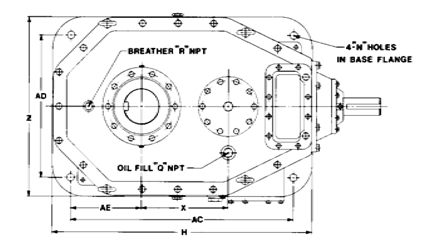

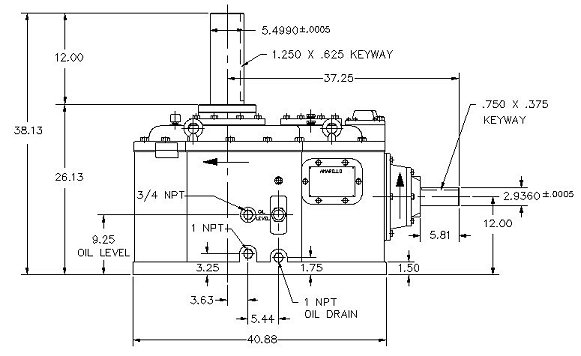

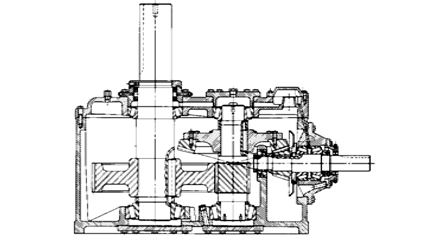

This is the standard right angle, double reduction gearbox. This gearbox is good for a maximum rating of 392 HP. The CTD-1713W gearbox is available with custom input and output shafts as well as many other options.

Brand New
In-Stock Price
$45,591.84
  • Technical Information
  • Maintenance Manual
  • $2,087.90 Electric Oil Pump
  • $1,633.63 Non-Reverse
  • $1,432.70 Mechanical Oil Pump
  • $812.45 Oil Heater and Thermostat
  • $733.82 Pressure Switch
  • $690.14 Oil Filter
  • $576.58 Oil Level Switch
  • $410.59 Export Box
  • $87.36 304S.S. Ball Valve
